Cyfox Live Gel Electrophoresis

Even today, laboratories usually have to use several separate devices and items on the laboratory desk in order to perform gel electrophoresis:

electrophoresis chamber
power supply
staining bath
UV desk
documentation device (Polaroid or CCD camera)
dark room
data storage / PC
many cables

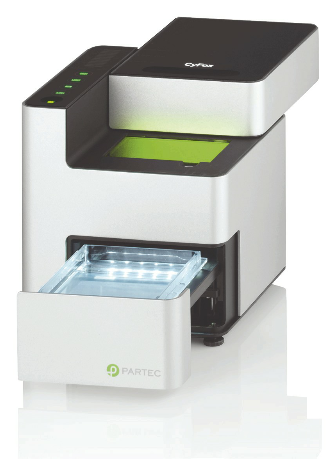

With the Partec CyFox®, the first fully integrated molecular diagnostic device for real-time gel electrophoresis is being offered as a stand-alone, compact, and easy-to-use "all in one" instrument with a size less than 210 x 210 x 227mm. The running gel can be monitored and visualized in "real-time" during the entire course of the measurement. Partec is also offers a wide range of dedicated reagents and consumables for gel electrophoresis in combination with the CyFox® (for research & diagnostics).

Highlights

Fully integrated molecular diagnostic device for gel electrophoresis
CyFox® live-imaging, multi-functional gel electrophoresis system for the separation and detection of DNA fragments in agarose gels
Exchangeable electrophoresis chamber with buffer reservoir for Agarose gels of 107 x 69 mm (15 / 30 pockets per gel)
Integrated electrophoresis power supply with voltage regulation between 40 V and 150 V
Built-in interchangeable 455 nm blue LED array with adjustable intensity for the excitation of highly fluorescent DNA fluorochromes (other wavelength LED arrays on request)
Real-time visual control and documentation
Integrated CMOS camera for gel live-imaging documentation with USB transfer of photographs on external PC
Dimensions [mm]: 210(L) x 210(W) x 227(H), weight: 6 kg
Wide range of dedicated reagent kits: HIV, CMV, Hepatitis, Tuberculosis, Malaria, and many more
