The NEW KD Scientific Allegro™ Peristaltic Pump System allows maintenance free, continuous flow pumping of various liquids. The fluid contacts only the inside surface of the tubing negating concern for valves, O-rings or seals that might be incompatible with fluid being pumped.

Clearly displays flow rate and total dispensed volume
User configurable multi-step operation
Dispenses in forward or reverse direction
Adjustable flow rate while pump is running
Stackable sealed remote pump drive with ip 32 rating
Selectable tubing table
Automatic tubing break-in
Automatic calibration procedures
External connectivity with USB interface and I/O port
Easy to maintain

Allegro Peristaltic Pumps Specifications

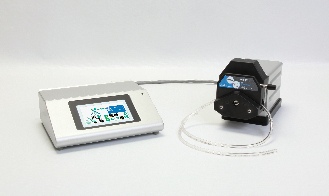

NEW KDS Allegro™

Peristaltic Pump System

Allegro™ III Peristaltic Pump System

Two single channel pump heads
Two simultaneous individual flows or one combined flow
Flow rates up to 2000 ml/min with combined channels
Accepts tubing ID sizes 0.8 mm (0.03 in) - 8.0 mm (0.32 in)
Compatible with Masterflex® L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17 and L/S® 18 tubing

Allegro™ I Peristaltic Pump System

One channel pump head
Flow rates up to 1500 ml/min
Accepts tubing ID sizes 0.8 mm (0.03 in) - 8.0 mm (0.32 in)
Compatible with Masterflex® L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17 and L/S® 18 tubing
