Centrifan PE

Easy Operation Frees Your Time

Just close the cover and walk away - no monitoring required.
Dry samples directly in 20mL scintillation and other common vials.
No need to maintain a vacuum pump or use a large supply of blow-down gas.
Move the portable unit near your experiment - it even operates on a lab cart.
Set the required temperature (ambient to 55°C) and off-timer (minutes to hours).

Efficient Technology Delivers Reliable Results

The low price Centrifan™ PE withstands years of lab work with virtually no maintenance.

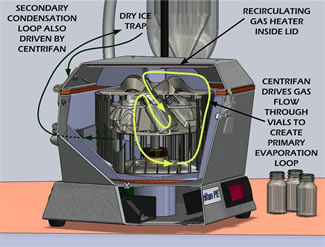

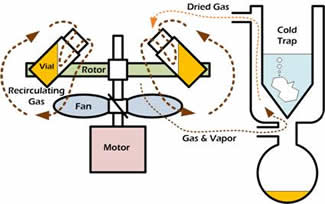

The self-generating blow-down technology protects samples from loss.
Centrifugal force allows secure drying directly in convenient scintillation vials.
High vapor recovery permits collection of the condensate as the final product.

Effective Process Eliminates Cross Contamination

No vacuum pump means no cross contamination from solvent bumping.
Radio labeled compounds dry safely.
Residual solvent content in the sample can be reduced with inert dry gas.
Compact unit fits in a hot cell to contain radioisotopes.

Environmental Design Saves Energy, Protects Your Health

The unit captures toxic vapors and materials in a closed system.
Quiet operation reduces noise pollution in the laboratory.
Low power consumption saves energy.

The new KD Scientific Centrifan™ PE is a convenient, compact evaporator/concentrator for research, pharmaceutical, and biotech labs working with samples such as DNA, RNA, and protein. Proprietary self-generated blowdown technology eliminates the potential problems with common evaporation systems such as vacuum centrifuges, rotary evaporators, nitrogen blow-down, and freeze dryers.

Synthetic and medicinal chemists will save time because the Centrifan™ PE dries samples without the monitoring required by a rotorvap. The system also works well for processing fractions collected from flash liquid chromatography. Pharmaceutical and university labs working with radioactive and other highly toxic compounds will appreciate the advantage of the green chemistry design.

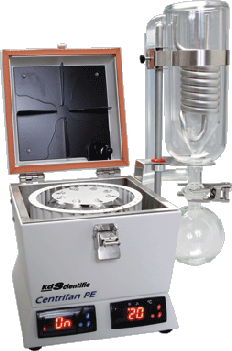

Centrifan™ PE

Evaporator/Concentrator

Simple, Reliable, Vacuum-Free, Safe for Samples and Users

Vacuum-Free - no bumping or splashing to risk sample purity and yield
Centrifugal Evaporation - sample securely pressed in spinning containers
Versatile - ideal for LC fractions, synthesis reactions, harsh inorganic chemistry, cold room operations, toxic compounds, radioisotopes
Low Maintenance - no vacuum pump; no noise; simple unattended operation
Temperature - programmable ambient to 55°C
Off-Timer - programmable from minutes to hours
Green Solvent Recovery - captured gas recirculates in a closed system; toxic materials are contained
Easy-to-Use - close the lid to start
Flexible - concentrate samples or evaporate to complete dryness, or collect distillate
Compact - portable, minimal bench space
Containers - use 20/30/40 mL scintillation vials, 1.6 mL Eppendorf tubes, 4 mL (1 dram) vials, or 16 mm x 100 mm test tubes
